Leibniz equality in TypeScript

Published at 2019-04-03 by Werner de Groot

In this post I’ll explain how you can use Leibniz equality to safely type your higher-order components in React, although it can be used in many other places (outside the React ecosystem) too.

Introduction

At the client I’m currently working for we use a lot of different charts to visualize processes over time. We have line charts, Gantt charts, you name it. Each of those charts features buttons which allows users to zoom in or out.

I’d like to use a simplified version of one of those graphs to explain what Leibniz, a German mathematician who lived well over 300 years ago, has to do with TypeScript.

Motivating example

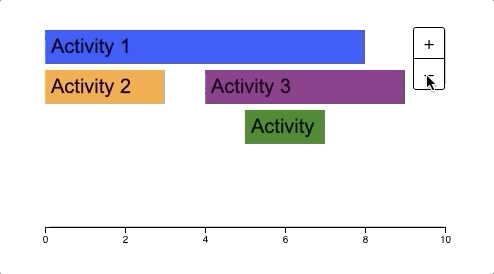

Let's suppose our graph looks a bit like this:

I use a component Graph which takes the following props:

[GraphProps.ts](https://gist.github.com/wernerdegroot-blogs/233ddd104b1e58f14382de69080c7f9f#file-GraphProps-ts)

type GraphProps = {
  activities: Activity[]
  dayStart: number
  dayEnd: number
  onZoomIn: () => void
  onZoomOut: () => void
}

What do we need to show a graph? We need:

Zooming in and out

In this aside, I’d like to show you the function that handles zooming in or out. It’s not really relevant to the rest of the story (and you can skip this if you like) but it might come in handy if you wish to code along with this blog post.

[zoom.ts](https://gist.github.com/wernerdegroot-blogs/ba3ebc50d0c63c54bd89d6672b7edaa7#file-zoom-ts)

function zoom(dayStart: number, dayEnd: number, zoomFactor: number): [number, number] {
  // What is the middle of the time range?
  // When zooming in or out, the middle of the time range should stay the middle.
  const dayMiddle = (dayEnd + dayStart) / 2

  // Determine what the new time range should be using the `zoomFactor`.
  const oldTimeRange = dayEnd - dayStart
  const newTimeRange = oldTimeRange * zoomFactor

  // Calculate the new boundaries of the time range:
  const newDayStart = dayMiddle - newTimeRange / 2
  const newDayEnd = dayMiddle + newTimeRange / 2

  return [newDayStart, newDayEnd]
}

Higher-order component

Although it is tempting to let this component manage its own dayStart and dayEnd (especially now that we can use hooks), it has two benefits to manage that state externally:

If I would create a higher-order component (HOC) to manage that state for me, I would get the best of both worlds. I get an easy to use component which manages its own state if I wrap Graph in this HOC, but I get a lot of power if I choose not to.

Furthermore, I can apply this HOC to many other components which have a time axis and support some form of zooming in and out.

What should this HOC look like? What is the input? And what is the output?

The HOC we will write will provide the following props to the inner component (which we’ll call Inner in what follows):

[leibniz-03-TimeAxisProps.ts](https://gist.github.com/wernerdegroot-blogs/d2ab9d1b04b4170309dd81b5b85db6c5#file-leibniz-03-TimeAxisProps-ts)

type TimeAxisProps = {
  dayStart: number
  dayEnd: number
  onZoomIn: () => void
  onZoomOut: () => void
}

It will produce a component (which we’ll call Outer from now on) that takes the following props¹:

[leibniz-04-OuterProps.ts](https://gist.github.com/wernerdegroot-blogs/f8dc13b757ddbba78bcd5d01d14e8c1a#file-leibniz-04-OuterProps-ts)

type OuterProps<InnerProps> = Omit<InnerProps, keyof TimeAxisProps>

This might be a bit intimidating. What this says is that we can determine the props to the outer component (OuterProps) from the props to the inner component (InnerProps) by removing all values that are shared with TimeAxisProps (dayStart, dayEnd, onZoomIn and onZoomOut to be precise)².

Now that we know what the HOC should do, we can focus on how it should do it:

[leibniz-05-WithTimeAxis.tsx](https://gist.github.com/wernerdegroot-blogs/5a37a833eed02e85f937572087bd09fc#file-leibniz-05-WithTimeAxis-tsx)

// The state that we want to manage for `Inner`:
type OuterState = {
  dayStart: number
  dayEnd: number
}

function WithTimeAxis<InnerProps extends TimeAxisProps>(Inner: React.ComponentType<InnerProps>) {
  return class Outer extends React.Component<OuterProps<InnerProps>, OuterState> {
    constructor(props: OuterProps<InnerProps>) {
      super(props)

      // Choose a sensible default state:
      this.state = {
        dayStart: 0,
        dayEnd: 10
      }
    }

    public render() {
      // Construct `TimeAxisProps`.
      const timeAxisProps: TimeAxisProps = {
        dayStart: this.state.dayStart,
        dayEnd: this.state.dayEnd,
        onZoomIn: this.handleZoomIn,
        onZoomOut: this.handleZoomOut
      }

      // Combine `OuterProps` and `TimeAxisProps`
      // to get `InnerProps`.
      const innerProps: InnerProps = {
        ...this.props,
        ...timeAxisProps
      }

      // Render...
      return <Inner {...innerProps} />
    }

    private handleZoomOut = () => {
     const [newDayStart, newDayEnd] = zoom(
        this.state.dayStart,
        this.state.dayEnd,
        2 // Make the time range twice as big
      )
      this.setState({ dayStart: newDayStart, dayEnd: newDayEnd })
    }

    private handleZoomIn = () => {
      const [newDayStart, newDayEnd] = zoom(
        this.state.dayStart,
        this.state.dayEnd,
        0.5 // Make the time range half as big (twice as small)
      )
      this.setState({ dayStart: newDayStart, dayEnd: newDayEnd })
    }
  }
}

That’s a big piece of code! We can see how to handle zooming in and zooming out. We can also see how we can combine both the OuterProps and the TimeAxisProps to render the Inner-component. You might also have noticed that InnerProps extends TimeAxisProps. Constraining our generic type parameter it this way ensures that we can only apply this HOC on components that have at least the props dayStart, dayEnd, onZoomIn and onZoomOut that we’d like to provide to it. If that component doesn’t have these four props, why even apply WithTimeAxis, right?

Trouble

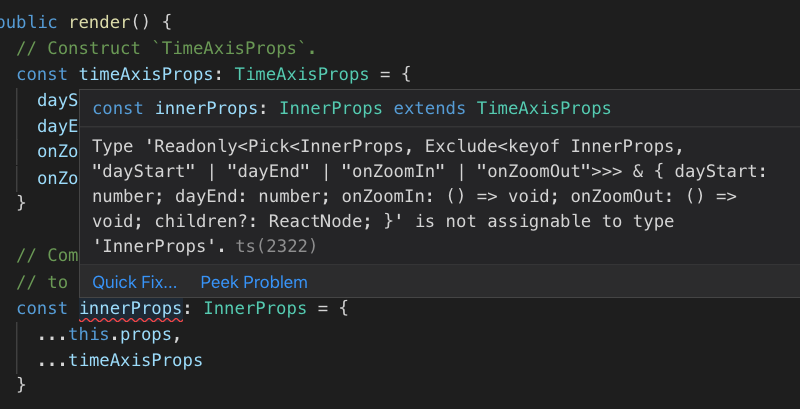

There is, however, a tiny problem… It doesn't compile!

But why doesn't it? TypeScript has trouble figuring out that the combination of OuterProps<InnerProps> and TimeAxisProps is equal to InnerProps. Although this is true for the case with GraphProps, it isn't true in general.

To give you an example in which this isn’t true, let’s suppose that we try to apply the HOC to a component CounterExample with the following props:

[leibniz-06-CounterExampleProps.ts](https://gist.github.com/wernerdegroot-blogs/17879a042e2df6fbf7be765fb07fc6b8#file-leibniz-06-CounterExampleProps-ts)

type CounterExampleProps = {
  activities: Activity[]
  dayStart: 0 // Can only start at zero!
  dayEnd: number
  onZoomIn: () => void
  onZoomOut: () => void
}

where I’d like to point your attention to the dayStart: 0.

I admit, this is a bit farfetched, but it does illustrate the point. We shouldn’t apply WithTimeAxis to CounterExample as the HOC might provide a dayStart that is not equal to zero. In fact, changing the zoom level multiple times ensures that dayStart will eventually be non-zero, even if it was equal to zero initially.

The TypeScript isn’t complaining about this when we do try to apply WithTimeAxis to CounterExample, as CounterExampleProps nicely extends TimeAxisProps as I required. CounterExampleProps is more specific than TimeAxisProps (because the type 0 is more specific than number) but that is allowed for subtypes. Instead, the compiler has noticed this possibility even before we did, and that is why our HOC doesn’t compile!

The root of our issues is with the InnerProps extends TimeAxisProps constraint. What we try to express is that all properties of TimeAxisProps are shared with InnerProps without allowing for subtypes. Unfortunately extends is currently the best we can do. In fact, it’s the only type of constraint we can express on our generic type parameters in TypeScript.

Hope on the horizon

We can solve this problem by pushing the burden of proof up a level. We ask the user for a function convert that is able to convert the combination of OuterProps<InnerProps> and TimeAxisProps (which can be expressed in TypeScript as OuterProps<InnerProps> & TimeAxisProps) to InnerProps. If the user can do that, we can call Inner with the right props:

[leibniz-07-WithTimeAxis.tsx](https://gist.github.com/wernerdegroot-blogs/b0ce2eb9479c9d548b4ce3495bb211a5#file-leibniz-07-WithTimeAxis-tsx)

function WithTimeAxis<InnerProps extends TimeAxisProps>(
  Inner: React.ComponentType<InnerProps>,
  convert: (p: OuterProps<InnerProps> & TimeAxisProps) => InnerProps
) {
  return class Outer extends React.Component<OuterProps<InnerProps>, OuterState> {

    ...

    public render() {

      ...

      // Combine `OuterProps` and `TimeAxisProps`
      // to get `InnerProps`.
      const innerProps: InnerProps = convert({
        ...this.props,
        ...timeAxisProps
      })

      // Render...
      return <Inner {...innerProps} />
    }

    ...

  }
}

What does this conversion function look like in the example of GraphProps? It’s not very difficult at all! In the example of GraphProps we can see that:

What it boils down to is that we are asked to provide a function that makes this very trivial conversion:

[leibniz-08-trivial.ts](https://gist.github.com/wernerdegroot-blogs/9e53339b4ed8a0485174812ddea9823e#file-leibniz-08-trivial-ts)

function trivial(graphProps: GraphProps): GraphProps {
  return graphProps
}

const GraphWithTimeAxis = WithTimeAxis(Graph, trivial)

We can even use the identity function if we’d like:

[leibniz-09-identity.ts](https://gist.github.com/wernerdegroot-blogs/0c0d992f20045903fc0e50233d7f64dc#file-leibniz-09-identity-ts)

function identity<T>(t: T): T {
  return t
}

const GraphWithTimeAxis = WithTimeAxis(Graph, identity)

For CounterExample we are asked to provide a conversion function that takes an object with dayStart: number to dayStart: 0. We could simply provide a conversion function that maps every dayStart (whether it is 1, 2, 99 or something else) to 0 but that would clearly not be in the spirit of WithTimeAxis. If I would instead try to use something identity in this case, TypeScript would complain.

which is a rather nice way of hearing about this compilation error I think. (Especially the note at the bottom that says "Type 'number' is not assignable to type '0'" points you in the right direction immediately.)

As we’ve concluded earlier, OuterProps<CounterExampleProps> & TimeAxisProps is not equal to CounterExampleProps, and the compiler can tell you that. If you cannot use something like identity or trivial, that means you probably shouldn’t use this HOC.

This is really the crucial step of this blog, so take some time to digest this. We’ve pushed the burden of proving that OuterProps<InnerProps> & TimeAxisProps to InnerProps from Outer (where that’s hard or even impossible to do) to the consumers of this component (where that is easy or even trivial to do). We can’t prove this in general, but we can do it case-by-case every time we apply WithTimeAxis.

Leibnizian equality

A famous mathematician called Leibniz described a form of equality in which two things (a and b) can be considered to be equal if every predicate that holds for a also holds for b (and vice versa).

In TypeScript, we can express this as

[leibniz-10-Leibniz.ts](https://gist.github.com/wernerdegroot-blogs/9e26e278c02c700af1845d37632fc28b#file-leibniz-10-Leibniz-ts)

type Leibniz<A, B> = ((a: A) => B) & ((b: B) => A)

Two types A and B are equal if every function that maps A to B is also a mapping from B to A. You can see that it’s only possible to construct such a function if A is equal to B. In that case Leibniz<A, B> collapses to type Leibniz<A, A> = (a: A) => A (in other words, it is our identity function).

Leibniz is a formalization of the technique we used in the previous section with a HOC:

[leibniz-11-WithTimeAxis.tsx](https://gist.github.com/wernerdegroot-blogs/c584c3e77ed95b7fc5c3bcf39f4460ee#file-leibniz-11-WithTimeAxis-tsx)

function WithTimeAxis<InnerProps extends TimeAxisProps>(
  Inner: React.ComponentType<InnerProps>,
  leibniz: Leibniz<OuterProps<InnerProps> & TimeAxisProps, InnerProps>
) {
  return class Outer extends React.Component<OuterProps<InnerProps>, OuterState> {

    ...

    public render() {

      ...

      // Combine `OuterProps` and `TimeAxisProps`
      // to get `InnerProps`.
      const innerProps: InnerProps = leibniz({
        ...this.props,
        ...timeAxisProps
      })

      // Render...
      return <Inner {...innerProps} />
    }

    ...

  }
}

By requiring a Leibniz<OuterProps<InnerProps> & TimeAxisProps, InnerProps> this function expresses that it can only do its job if OuterProps<InnerProps> & TimeAxisProps and InnerProps are equal.

Because Leibniz<...> serves as our type constraint, we can even drop the extends from InnerProps extends TimeAxisProps. This is no real loss as that extends wasn’t doing a very good job anyways.

Conclusion

Sometimes we need something stricter than extends, or we’d like to constrict the type parameter in the other direction (number extends T instead of T extends number). In those cases Leibniz<...> can be your friend. In my experience using a Leibniz<...> improves the readability of your type constraints when those constraints get more complicated (or include three or more different types).

Afterthoughts

This technique was first used in Typing Dynamic Typing (Baars and Swierstra, ICFP 2002) but I haven’t seen it used in TypeScript anywhere yet. I’m really interested to hear how you would tackle the problem addressed in this post without using a Leibniz<...> or if you’ve seen it used in similar (or different!) places. Let me know!

[1]: Omit will be introduced in TypeScript 3.5. In the meantime, you can define it yourself as type Omit<O, K extends keyof O> = Pick<O, Exclude<keyof O, K>> .

[2]: We’ve defined OuterProps in terms of InnerProps. Like in mathematics, where you can express y in terms of x (y = 2_x_) or x in terms of y (x = y / 2), TypeScript allows me to reverse this relationship. We get

[leibniz-12-InnerProps.ts](https://gist.github.com/wernerdegroot-blogs/260c0917f0f805fb3406f8dbff051cbe#file-leibniz-12-InnerProps-ts)

type InnerProps<OuterProps> = OuterProps & TimeAxisProps

No need for complicated tricks like Omit<...>. Unfortunately, this doesn’t work. Because we start out with an Inner-component, from which we generate an Outer-component, we should start out with an InnerProps, from which we derive the OuterProps. If we would reverse this relationship by writing

[leibniz-13-WithTimeAxis.tsx](https://gist.github.com/wernerdegroot-blogs/21a456a053cec1f303a5f6f2a4a26506#file-leibniz-13-WithTimeAxis-tsx)

type InnerProps<OuterProps> = OuterProps & TimeAxisProps

function WithTimeAxis<OuterProps>(Inner: React.ComponentType<InnerProps<OuterProps>>) {
  return class Outer extends React.Component<OuterProps, OuterState> {

    ...

  }
}

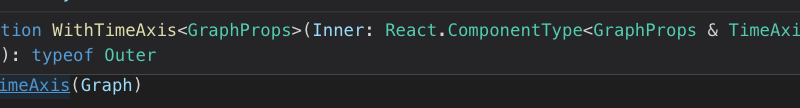

we'd lose the ability for TypeScript to correctly infer the right types:

In our example, the compiler would infer OuterProps to be equal to GraphProps, which includes dayStart, dayEnd, onZoomIn and onZoomOut so when you try to use the resulting component you are still asked to provide those props (even though they will by overwritten by the ones the HOC provides).

If you don’t mind helping the compiler a hand by providing the type yourself (instead of letting TypeScript infer it) then this is a very nice way of writing HOC’s and you needn’t read the rest of the blog.
